Automatic Weather Station Instruments RS485 Module With Heater For Severely Cold Areas
Product introduce

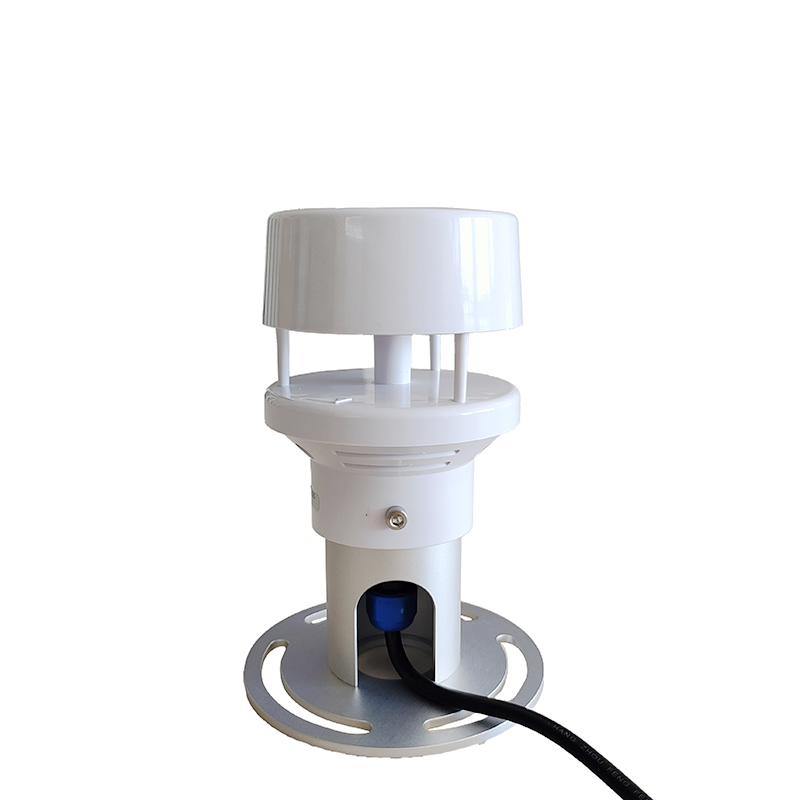

The micro-weather station is a high-precision integrated meteorological sensor that can simultaneously measure five meteorological parameters: wind speed, wind direction, ambient temperature, relative humidity and atmospheric pressure. It adopts an aluminum alloy shell design, with a compact and beautiful structure, easy to install and maintain. IP66 protection level, DC8~30V wide voltage power supply, standard RS485 output mode.
Product Features
1.Integrate five meteorological parameters into one device, highly integrated, easy to install and use;
2.Tested by a third-party professional organization, accuracy, stability, anti-interference, etc. are strictly guaranteed;
3.Made of high-quality aluminum, special surface treatment process, lightweight and corrosion-resistant;
4.Can work in complex environments, maintenance-free;
5.Optional heating function, suitable for severe cold and frozen areas;
Compact structure, modular design, can be deeply customizedized
4.Can work in complex environments, maintenance-free;
5.Optional heating function, suitable for severe cold and frozen areas;
Compact structure, modular design, can be deeply customized.
Product Applications
Power: transmission lines, substations, wind towers, etc.;
Smart cities: smart light poles;
Transportation: railways, highways;
Meteorology, environmental protection;
Photovoltaics, agriculture
Product Parameters
| Parameters Name | 5 in 1 micro weather station |
| Size | 135mm*209mm |
| Weight | 3kg |
| Operating temperature | -40-+85℃ |
| Power consumption | 12VDC, max120 VA (heating) / 12VDC, max 0.18VA (working) |
| Operating voltage | 8-30VDC |
| Electrical connection | 6pin aviation plug |
| Casing material | Aluminum |
| Protection level | IP66 |
| Corrosion resistance | C5-M |
| Surge level | Level 4 |
| Baud rate | 1200-57600 |
| Digital output signal | RS485 half/full duplex |
|
Wind speed |
|
| Range | 0-50m/s (0-75m/s optional) |
| Accuracy | 0.2m/s (0-10m/s), ±2% (>10m/s) |
| Resolution | 0.1m/s |
|
Wind direction |
|
| Range | 0-360° |
| Accuracy | ±1° |
| Resolution | 1° |
|
Air temperature |
|
| Range | -40-+85℃ |
| Accuracy | ±0.2℃ |
| Resolution | 0.1℃ |
|
Air humidity |
|
| Range | 0-100%(0-80℃) |
| Accuracy | ±2%RH |
| Resolution | 1% |
|
Atmospheric pressure |
|
| Range | 200-1200hPa |
| Accuracy | ±0.5hPa(-10-+50℃) |
| Resolution | 0.1hPa |
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba, you will get the reply at once.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be integrated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485/RS232/SDI12 can be optional. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Can we have the screen and the data logger?
A: Yes, we can match the screen type and data logger which you can see the data in the screen or download the data from the U disk to your PC end in excel or test file.
Q: Can you supply the software to see the real time data and download the history data?
A: We can supply the wireless transmission module including the 4G,WIFI,GPRS , if you use our wireless modules, we can supply the free server and free software which you can see the real time data and download the history data in the software directly.
Q: What’s the standard cable length?
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to wind power generation?
A:Urban roads,bridges,smart street light, smart city,industrial park and mines, etc.
